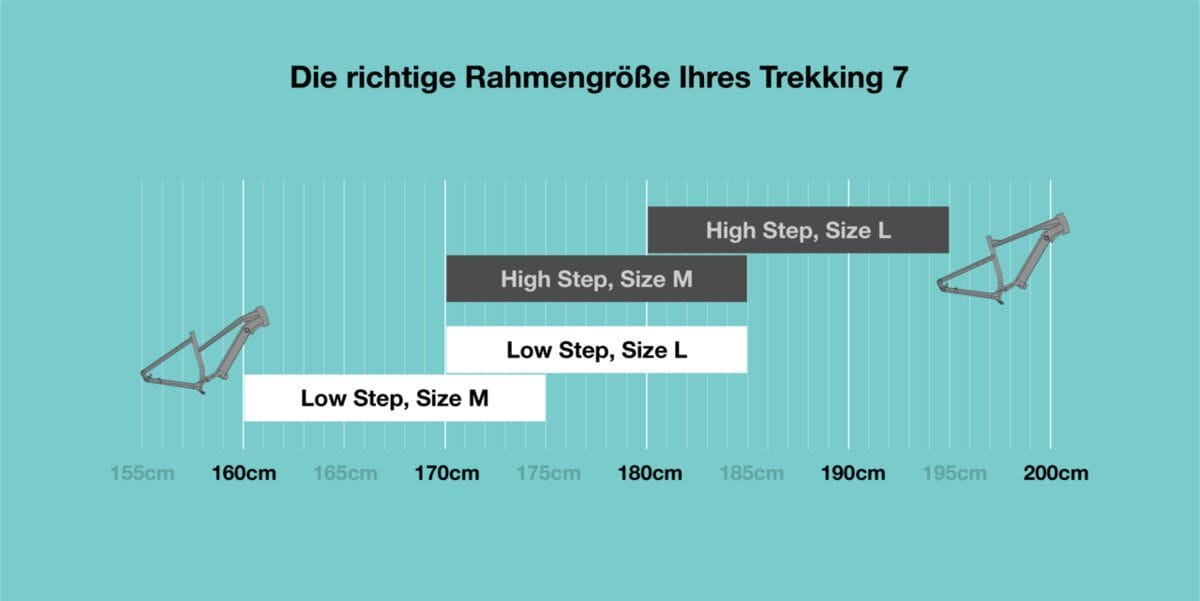

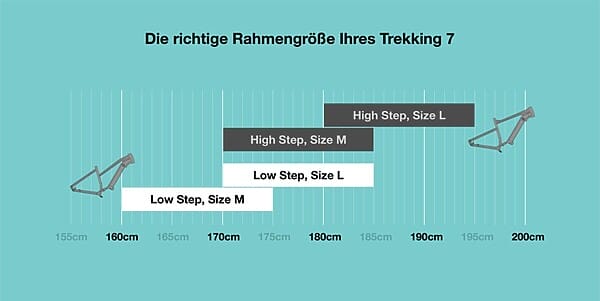

Taille du cadre : M, L
-
Détails du cadre : Hepha 6061 aluminium, soudure classique
-
Matériau du cadre : aluminium
-
Poids : env. 26,5 kg
-
Poids total autorisé : 130 kg
Suspension
-
Fourche suspendue : Suntour SF19 NEX-E25-C NLO DS
-
Débattement : 63 mm
Transmission
-
Levier de vitesses : Shimano SL-U6000-10R / CUES
-
Dérailleur arrière : Shimano RD-U6020 / CUES / 10 vitesses
-
Cassette : Shimano CS-LG400-10 / 11-39 dents
-
Plateau : Alloy BCD104, 44 dents, CL = 50 mm
-
Chaîne : Shimano CN-LG500
-
Manivelles : Alloy 170-ISIS, black
-
Longueur des manivelles : 170 mm
-
Pédales : non incluses, voir options disponibles
Freins
-
Freins : Shimano BR-MT410
-
Disque avant : SM-RT54, 180 mm
-
Disque arrière : RT-EM300, 160 mm
Roues
-
Moyeu avant : KT-TZ0F
-
Moyeu arrière : KT-TZYR
-
Jantes : Hepha Alloy / R25-1R / 27,5″ / 584×25
-
Rayons : 13G ED Black
Poste de pilotage et selle
-
Cintre : Alloy 6061 / 660 mm / 31,8 mm
-
Poignées : VELO VLG-1389D3, 133 mm
-
Potence : Satori UP2+ Adjustable Stem, 110 mm, aluminium
-
Longueur de la potence : 110 mm
-
Jeu de direction : GH-AD20V : OD44*ID28.6 *CONE RACE_30
-
Selle : Selle Royal Vivo 7823 Black Corel
-
Tige de selle : Alloy, 31,6×300 mm
-
Collier de selle : Quick-Release
Accessoires
-
Phare avant : AXA Blue Line 50 / 50 Lux
-
Éclairage arrière : AXA Blue Line LED
-
Porte-bagages : Standwell / Alloy / MIK HD ready
-
Garde-boue : SP-60C-27.5, noir mat
-
Béquille : Standwell-RA060JD, alliage
-
Sonnette : Annuo, 11A-05, noire
